Zinc Alloy Die-Casting Polishing: Process Analysis of Vibration Finishing Machine for Removing Die Lines

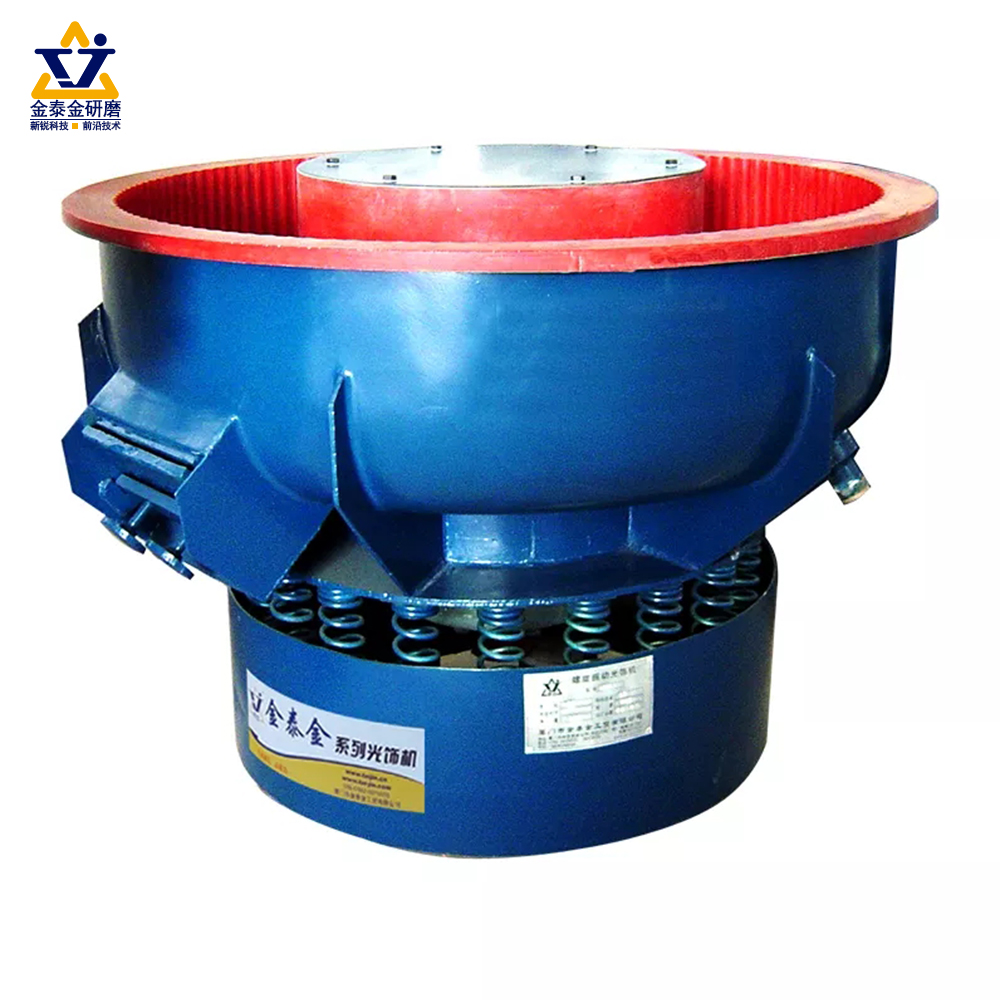

1. Components Involved

• Vibration Motor: This is the heart of the machine, providing the necessary power to generate vibrations. The vibration frequency and amplitude can often be adjusted to suit different processing requirements.

• Container: Holds the zinc alloy die-castings, abrasive media, and polishing compound. The shape and size of the container can vary depending on the size and quantity of the parts to be processed.

• Abrasive Media: There are various types of abrasive media available, such as ceramic pellets, plastic chips, and metal shot. The choice of abrasive media depends on the hardness of the zinc alloy, the depth of the die lines, and the desired surface finish. For example, for removing relatively thick die lines on zinc alloy, harder ceramic abrasive media may be used, while for a more delicate finish, softer plastic abrasive media can be selected.

• Polishing Compound: This helps in enhancing the polishing effect. It can act as a lubricant, reducing friction between the parts and the abrasive media, and also contains chemicals that can react with the surface of the zinc alloy to promote a smoother finish.

2. The Polishing Process

• When the vibration finishing machine is turned on, the vibration motor causes the container to vibrate. This vibration makes the abrasive media, polishing compound, and zinc alloy die-castings move in a complex, three - dimensional pattern. The abrasive media constantly rubs against the surface of the die-castings, gradually removing the die lines through a process of abrasion. As the parts tumble and rotate within the container, all surfaces, including those with die lines, are exposed to the abrasive action of the media. The polishing compound further aids in this process by facilitating the removal of small particles and preventing the build-up of debris on the surface of the die-castings.

1. High Efficiency

• Vibration finishing machines can process a large number of zinc alloy die-castings simultaneously. This is especially beneficial for mass production scenarios. For example, in a factory that produces thousands of zinc alloy parts for automotive or electronics applications daily, a vibration finishing machine can handle a batch of parts in a relatively short time, significantly increasing the overall production throughput compared to manual polishing methods.

2. Uniform Surface Finish

• The three-dimensional movement of the parts, abrasive media, and polishing compound ensures that all surfaces of the zinc alloy die-castings are polished evenly. This results in a consistent surface finish across the entire part, eliminating the risk of uneven polishing that can occur with manual or some other mechanical polishing methods. Whether the die lines are located on flat surfaces, curved areas, or in hard-to-reach corners of the die-casting, the vibration finishing machine can effectively remove them and create a smooth, uniform surface.

3. Cost - Effectiveness

• In the long run, using a vibration finishing machine is more cost-effective than manual labor for die line removal. Manual polishing requires a significant amount of labor hours, which increases labor costs. Additionally, manual polishing may lead to higher error rates, resulting in rework or scrap parts. Vibration finishing machines, on the other hand, can operate continuously with minimal supervision once set up correctly. They also have a relatively long lifespan, and the cost of abrasive media and polishing compounds is generally lower compared to the cost of extensive manual labor.

4. Preservation of Part Integrity

• Unlike some aggressive mechanical polishing methods that may cause damage to the shape or dimensions of the zinc alloy die-castings, vibration finishing machines use a gentle yet effective abrasive action. The controlled vibration and the choice of appropriate abrasive media ensure that the die lines are removed without significantly altering the original shape or dimensions of the part. This is crucial for parts that require precise tolerances, such as those used in the aerospace or medical industries.

1. Preparing the Machine

• First, select the appropriate vibration finishing machine based on the size and quantity of the zinc alloy die-castings. Ensure that the machine is clean and in good working condition. Check the vibration motor, container, and any associated control panels for any signs of damage or malfunction.

• Next, choose the right abrasive media and polishing compound. As mentioned earlier, consider the properties of the zinc alloy and the severity of the die lines. For example, if the zinc alloy is relatively soft and the die lines are not too deep, a softer abrasive media like plastic pellets combined with a mild polishing compound may be sufficient.

2. Loading the Parts

• Place the zinc alloy die-castings into the container of the vibration finishing machine. Make sure the parts are evenly distributed to ensure uniform processing. Avoid overloading the container, as this can affect the movement of the parts, abrasive media, and polishing compound and may lead to uneven polishing.

3. Setting the Parameters

• Adjust the vibration frequency and amplitude according to the characteristics of the zinc alloy and the desired polishing effect. Higher frequencies and amplitudes are generally used for more aggressive removal of die lines, while lower settings are suitable for achieving a finer finish. Also, set the processing time. This can vary depending on the depth of the die lines and the type of abrasive media used. Typically, the processing time can range from 30 minutes to several hours.

4. Monitoring the Process

• During the operation of the vibration finishing machine, periodically check the progress of the polishing process. This can be done by visually inspecting a sample part or using surface roughness measurement tools. If necessary, adjust the parameters or add more abrasive media or polishing compound to achieve the desired result.

5. Unloading and Post-Processing

• Once the polishing process is complete, carefully unload the zinc alloy die-castings from the machine. Separate the parts from the abrasive media using a suitable screening device. After unloading, the parts may need to be cleaned thoroughly to remove any remaining abrasive particles or polishing compound residue. This can be done using a solvent or by ultrasonic cleaning, depending on the type of residue and the requirements of the subsequent processes.

1. Automotive Industry

• A leading automotive parts manufacturer was facing challenges in removing die lines on zinc alloy components used in car interiors. These components had complex shapes, and manual polishing was time-consuming and resulted in inconsistent finishes. By implementing a vibration finishing machine, they were able to process a large number of parts in a single batch. The use of a custom - formulated abrasive media and polishing compound, based on the specific properties of the zinc alloy, allowed them to effectively remove the die lines and achieve a smooth, high - quality surface finish. This not only improved the aesthetics of the parts but also reduced the time and cost associated with the polishing process.

2. Electronics Industry

• In the production of zinc alloy housings for electronic devices, precision and a flawless surface finish are essential. A company in the electronics industry used a vibration finishing machine to remove die lines on these housings. The machine's ability to provide a uniform surface finish was crucial, as any imperfections on the surface could affect the fit of the internal components and the overall appearance of the product. With the vibration finishing machine, they were able to meet the strict quality standards of the electronics industry and increase their production efficiency significantly.
